================================ Outline ====================================
슬라이더 박스
----------------------------------------------------------------------------
슬라이더박스[1].pdf
/*** 코드 ***/
<form1.cs>
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
namespace mook_FormSlidMag
{
public partial class Form1 : Form
{
public static Point FormPt; //Form1 위치
public static Point FormPoint01; //Form2 위치
public static bool flag01; //Form2가 열려 있는지를 판단
public static bool flag02; //Form3이 열려 있는지를 판단
public static bool flag03; //Form3이 붙어 있는지를 판단
Form2 frm2 = new Form2();
Form3 frm3 = new Form3();
public Form1()
{
InitializeComponent();
}
private void btnShow_Click(object sender, EventArgs e)
{
if (flag01 == false) //폼2가 닫혀 있을 때 실행
{
this.btnShow.Text = "슬라이드 닫힘";
FormPoint01.X = this.Location.X;
FormPoint01.Y = this.Location.Y + 30;
this.TopMost = true;
frm2.Visible = true;
frm2.SlidingForm();
}
else //폼 2가 열려 있을 때 실행
{
this.btnShow.Text = "슬라이드 열림";
FormPoint01.X = this.Location.X + 300;
FormPoint01.Y = this.Location.Y + 30;
frm2.SlidingForm();
}
}
private void btnMag_Click(object sender, EventArgs e)
{
if(flag02 == false) //폼3가 닫혀 있을 때 실행
{
this.btnMag.Text = "폼 붙이기 닫기";
frm3.Show();
flag02 = true;
flag03 = true;
frm3.Location = new Point(this.Location.X, this.Location.Y + 310);
}
else //폼3가 열려 있을 때 실행
{
this.btnMag.Text = "폼 붙이기 열기";
frm3.Hide();
flag02 = false;
flag03 = false;
}
}
private void Form1_LocationChanged(object sender, EventArgs e)
{
FormPt = this.Location;
if (flag01 == true)
{
frm2.Left = this.Left + 300;
frm2.Top = this.Top + 30;
}
else
{
frm2.Left = this.Left;
frm2.Top = this.Top + 30;
}
if (flag02 == true && flag03 == true)
{
frm3.Location = new Point(this.Location.X, this.Location.Y + 310);
}
}
}
}
|
<form2.cs>
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
namespace mook_FormSlidMag
{
public partial class Form2 : Form
{
public Form2()
{
InitializeComponent();
}
private void Form2_Load(object sender, EventArgs e)
{
SlidingForm();
}
public void SlidingForm()
{
Location = Form1.FormPoint01;
timer.Start();
}
private void timer_Tick(object sender, EventArgs e)
{
if (Form1.flag01 == false)
{
Location = new Point(Location.X + 10, Location.Y);
if(Location.X == Form1.FormPoint01.X + 300)
{
timer.Stop();
Form1.flag01 = true;
}
}
else
{
Location = new Point(Location.X - 10, Location.Y);
if(Location.X == Form1.FormPoint01.X - 300)
{
timer.Stop();
Form1.flag01 = false;
}
}
}
}
}
|
<Form3.cs>
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
namespace mook_FormSlidMag
{
public partial class Form3 : Form
{
Point ptMouseCurrentPos; //마우스 클릭 좌표 지정
Point ptMouseNewPos; //이동시 마우스 좌표
Point ptFormCurrentPos; //폼 위치 좌표 지정
Point ptFormNewPos; //이동시 폼 위치 좌표
bool bFormMouseDown = false;
public Form3()
{
InitializeComponent();
}
private void Form3_Load(object sender, EventArgs e)
{
}
private void Form3_MouseDown(object sender, MouseEventArgs e)
{
if(e.Button == MouseButtons.Left)
{
bFormMouseDown = true;
ptMouseCurrentPos = Control.MousePosition; //마우스 클릭 좌표
ptFormCurrentPos = this.Location;
}
}
private void Form3_MouseMove(object sender, MouseEventArgs e)
{
if(bFormMouseDown == true)
{
ptMouseNewPos = Control.MousePosition;
ptFormNewPos.X = ptMouseNewPos.X -
ptMouseCurrentPos.X + ptFormCurrentPos.X; //마우스 이동 시 가로 좌표
ptFormNewPos.Y = ptMouseNewPos.Y -
ptMouseCurrentPos.Y + ptFormCurrentPos.Y; //마우스 이동 시 세로 좌표
this.Location = ptFormNewPos;
ptFormCurrentPos = ptFormNewPos;
ptMouseCurrentPos = ptMouseNewPos;
}
}
private void Form3_MouseUp(object sender, MouseEventArgs e)
{
if(e.Button == MouseButtons.Left)
{
bFormMouseDown = false;
if(this.Location.X <= Form1.FormPt.X + 30 && this.Location.X >= Form1.FormPt.X + 30)
{
if(this.Location.Y <= Form1.FormPt.Y + 340 && this.Location.Y >= Form1.FormPt.Y + 280)
{
this.Location = new Point(Form1.FormPt.X, Form1.FormPt.Y + 310);
Form1.flag03 = true;
}
else
{
Form1.flag03 = false;
}
}
else
{
Form1.flag03 = false;
}
}
}
}
}
|

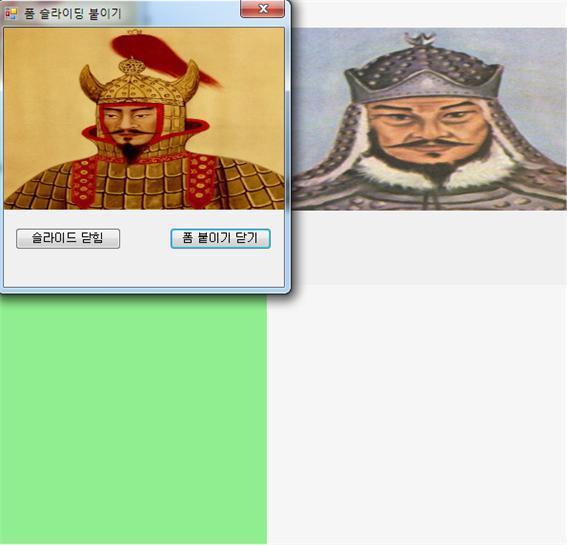

결과물
